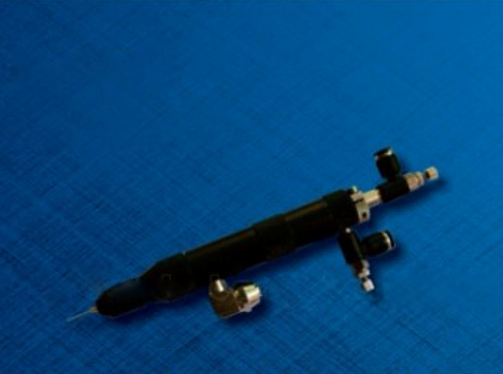

BD552 Plunger Mini Dispensing Valve
Type: diaphragm lifting type
Viscosity range: 1-300000cps
Weight: 70g
Control valve: two position five way solenoid valve
Operating speed:<600min
External dimensions: (D) 20x (H) 130mm
Operating air pressure: 4-7kgf/cm2
Feed pressure:<10kg
Inlet size: 1/8 ° NPT (f)
Main material: POM, cyanide plastic, stainless steel and other materials
Minimum injection volume: 0.001ml
Installation and fixation: φ 20 adjustable fixed blocks
Working temperature: above 60 degrees Celsius
Good suction function can effectively prevent fluid leakage
Can be connected to any feeding pump or storage pressure bucket for use
Can accept various types of needle tips for mouth opening
