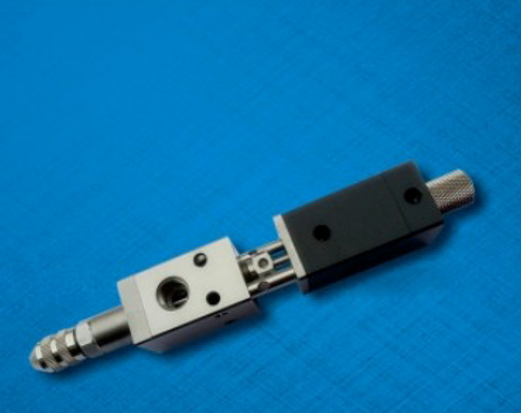

BD539 lift suction dispensing valve
Type: A22 suction type
Air source used: 4-7kgf/cm
Cylinder: double acting cylinder
Minimum output: 0.001ml
Viscosity range: 1-1.000.000CPS
Main material: aluminum alloy anodized/stainless steel
Feed pressure:<10kg
Inlet size: 1/8 ° NPT (f)
Operating speed:<600min
External dimensions: (D) 22x (H) 150mm
Installation and fixation: φ 4 * 2 horizontal hole spacing 13mm
Weight: 230g
Epoxy, silicone, adhesives with an equivalent viscosity range of 1-1.0000.000cps
The rebound function allows for instant rebound and breaking of the adhesive when it stops, ensuring that the broken adhesive is clean and does not drip or wire
. Suitable for various particle free fluids
