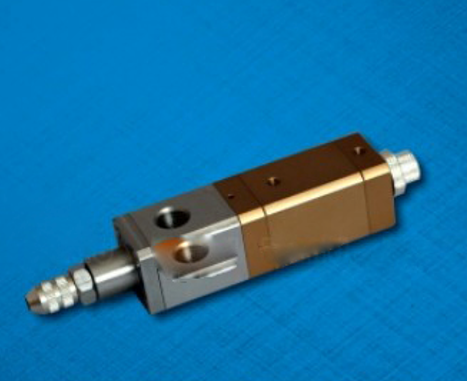

BD532 Lift type suction dispensing valve
Type: A30 suction type
Air source used: 4-7kgf/cm
Cylinder: double acting cylinder
Minimum vomit volume: 0.0001ml
Viscosity range: 1-1.000.000CPS
Main material: aluminum alloy anodized, stainless steel
Feed pressure: 10kg
Inlet size: 1/4 ° NPT (f)
Operating speed:<600min
External dimensions: (D) 30x (H) 150mm
Installation and fixation: M5 * 2 horizontal/hole spacing 15mm
Weight: 450g
Epoxy, silicone, and adhesives with a viscosity range of 1-1.0000.000cps
The rebound function allows for instant rebound and breaking of the adhesive when it stops, ensuring that the broken adhesive is clean and does not drip or wire
. Suitable for various particle free fluids
