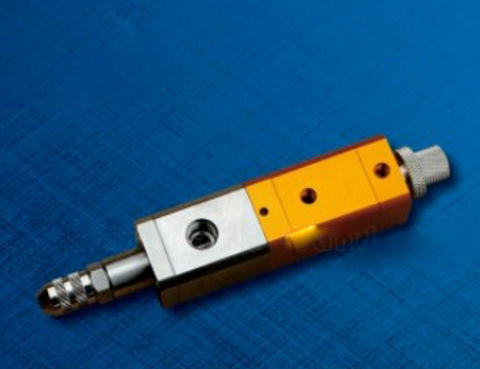

BD532A lift type suction dispensing valve
Type: A26 suction type
Air source used: 4-7kgf/cm
Cylinder: double acting cylinder
Minimum vomit volume: 0.0001ml
Viscosity range: 1-1.000.000CPS
Main material: aluminum alloy anodizing treatment, stainless steel
Feed pressure:<10kg
Inlet size: 1/8 ° NPT (f)
Operating speed:<600min
External dimensions: (D) 26x (H) 142mm
Installation and fixation: M5 * 2 horizontal/hole spacing 12mm
Weight: 310g
Epoxy, silicone, and adhesives with a viscosity range of 1-1.0000.000cps
The rebound function allows for instant rebound and breaking of the adhesive when it stops, ensuring that the broken adhesive is clean and does not drip or wire
. Suitable for various particle free fluids
