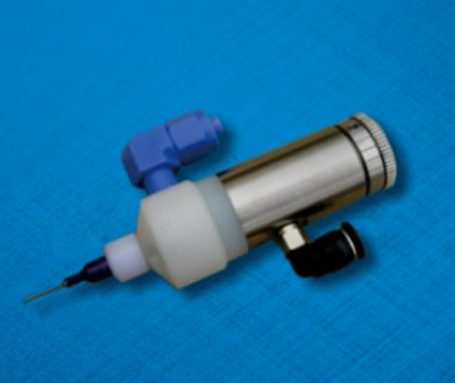

BD537 anaerobic dispensing valve
Type: single acting ejector pin type
Air source used: 4-7kgf/cm
Cylinder: single acting
Minimum output: 0.001ml
Operating viscosity: 1-10000cps
Main material: stainless steel, PP, Teflon, etc
Feed pressure:<10kg
Feed inlet size: 1/8 ° npt (f)
Operating speed:<600min
Overall dimensions (MM): c24x (H) 85mm circular
Installation size: M5 internal thread
Weight: 160g
Can be connected to any feeding pump or storage pressure bucket for use
Can accept various types of needle tips for mouth opening
