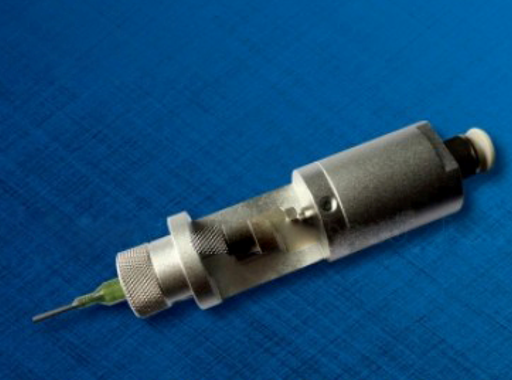

BD555Y Mini Valve Control Valve
Type: single acting
Air source used: 4-7kgf/cm
Cylinder: single acting
Minimum vomit volume: 0.01ml
Vscosity range: 1-1.000.000cps
Main material: anodized aluminum alloy, stainless steel
Feed pressure:<10kg
Feeding method: Mini Y-shaped valve with mixing tube
Operating speed:<600min
Overall dimensions (MM): c27x (H) 92mm circular
Installation size: M4 * 2S vertical, hole spacing 15mm
Weight: 130g
Use with 30-50ml double tube AB packaging adhesive, mini Y-shaped valve, and mixing tube.
Can accept various types of needle tips for mouth opening
