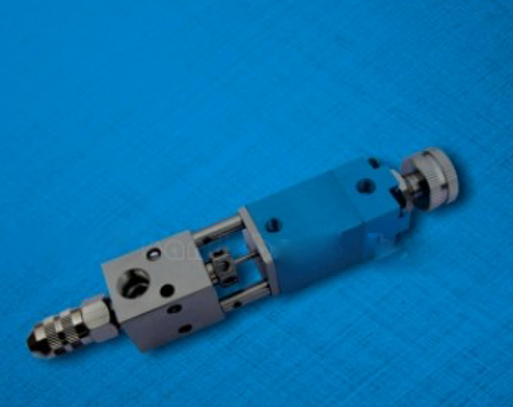

BD531 double acting needle dispensing valve
Type: Double acting ejector pin type
Air source used: 4-7kgf/cm
Cylinder: double acting cylinder
Minimum output: 0.001ml
Viscosity range: 1-1.000.000cps
Flow regulation: Yes
Main material: SUS 304 Stainless Steel
Feed pressure:<60kg
Feed inlet size: 1/8 ° npt (f)
Operating speed:<600min
Overall dimensions: (D) 21x (H) 130MM square
Installation and fixation: c4 * 2 horizontal hole spacing 13mm
Weight: 190g
